JanusTech supplies high quality and cost effective capital equipment solutions to enable today’s web printers to face the challenges of tomorrow. We will source equipment, refurbish, install, commission and fully project manage the entire process from beginning to end.
Reference:78059
Age:2008
Cut Off:2 x 445 mm
Web Width:1980 mm
Max Speed:70,000 CPH
Available:To be confirmed
MAN Lithoman 48pp Short Grain Heatset Web Offset Press
(1) manroland Splicer
• Unpack Station
• Automatic Reel Loading
• Automatic Core Ejection
• Integrated infeed
• E + L Web Guide
(1) Automatic Web Up System

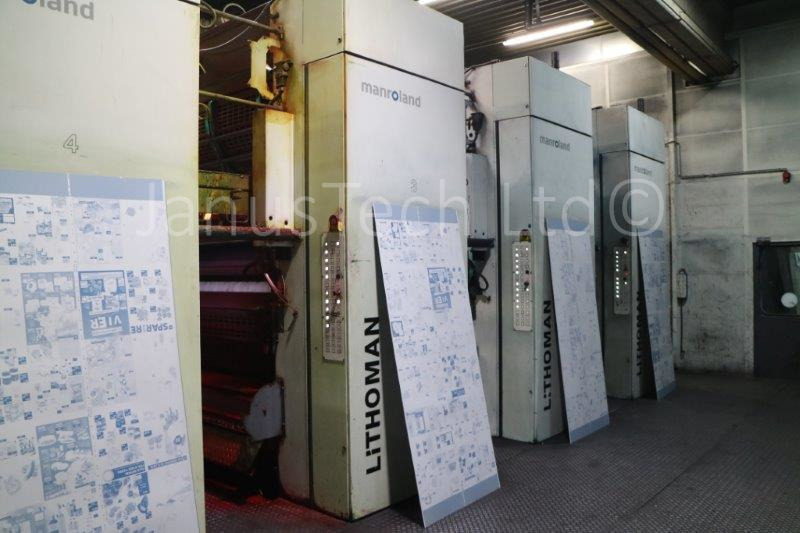

(4) MAN Lithoman Printing Units
• APL automatic plate change
• Elettra Fastwash blanket washing
• Automatic ink levelling system
• Mechanical and air bustle with centralized control
• Unit motor drive
(1) Technotrans Delta.d Dampening Water Circulation
(1) Filtration system for dampening water
(1) Web catcher

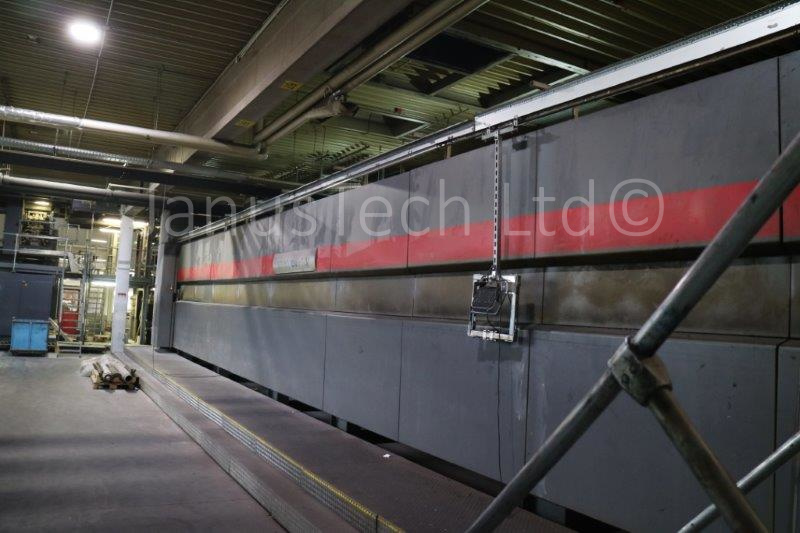

(1) 17.3M Contiweb Ecocool/T Hot Air Dryers each with:
• Ecoset Conversion (c. 2016)
• Integrated 9 roll chill stand
• Integrated WEKO silicon applicator
• E + L web-guide

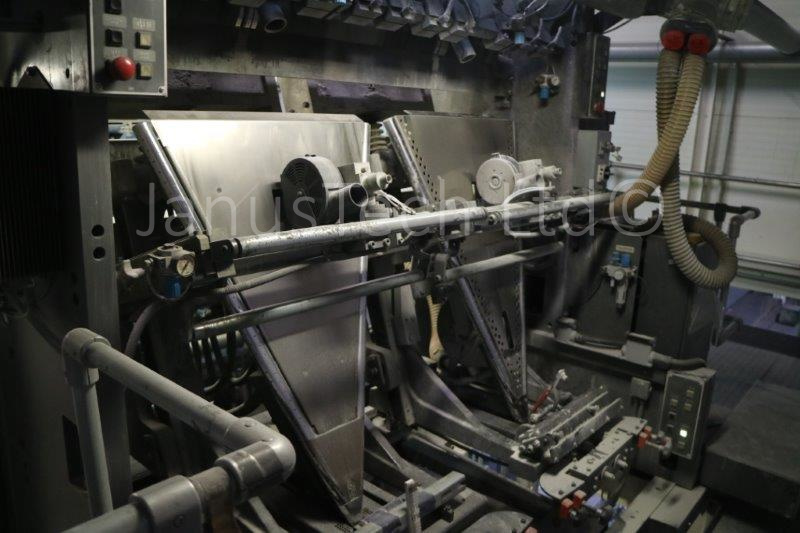

(1) Folder superstructure
• 4 ribbons
• 3 slitting units
• 4 pairs of air loaded angle bars
• 4 compensators
• Two air loaded formers
• 4 x Tolerans Speedliner stitching heads below formers (c.2016)
• Planatol Combijet 8MOD longitudinal gluing and fold softening
(1) MAN PFI 2:5:5 folder with:
• Cross fold (A3)
• 2 deliveries for A4 production
(1) manroland Automatic cut-off control
(1) manroland Automatic Colour Register Control S
(1) manroland IDC Ink Density Control

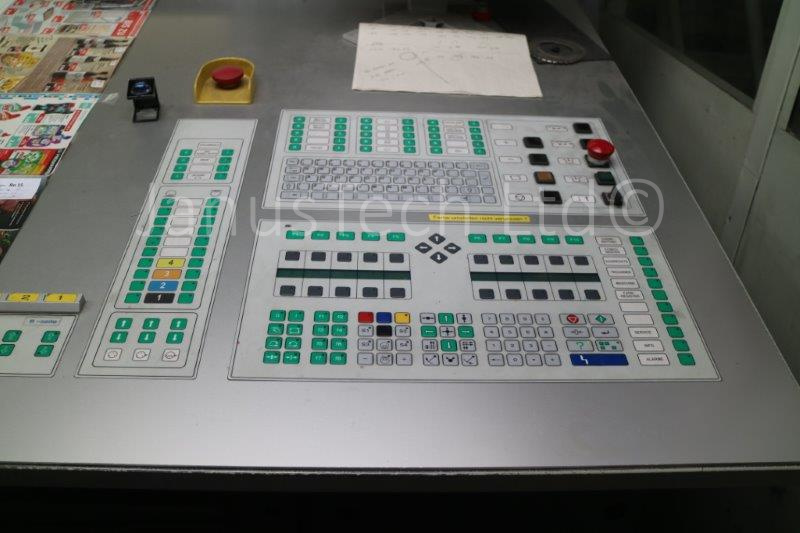

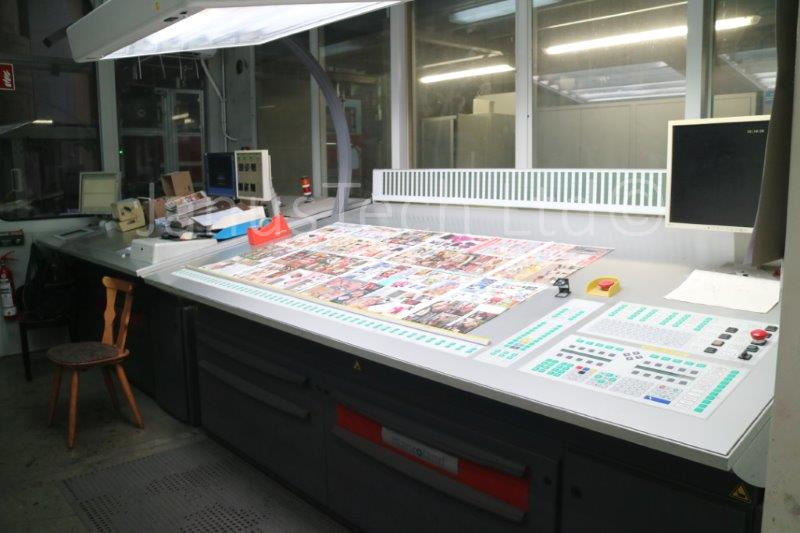

(1) Main Control Console
(2) Colour Desks
(1) Procemex Web Monitoring
(1) MAN PECOM Quick Start 1
(1) MAN Electrical Drive

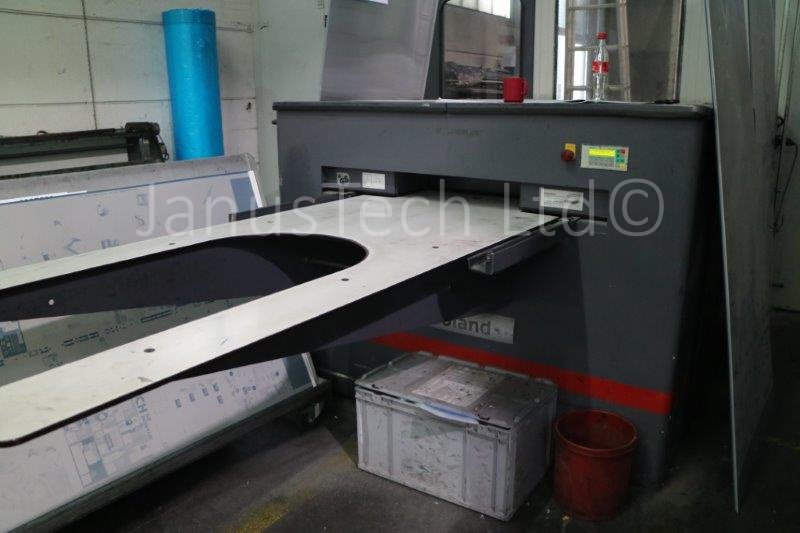

(1) MAN Plate Bender
(1) Plate Punch
(1) Cofely Axima Central Chilling Unit
(1) BAC Cooling Tower (external)
(4) Betz Inks Pumps
(1) Noise Enclosure
(1) Aircool Air Conditioning System
Post Press Equipment
(2) RIMA Exit Conveyors (stacked upper and lower)
(1) RIMA Steam Deserter (one into two streams – lower level)
(1) RIMA Waste Gate System
(3) RIMA 90º flow turns – stacked
(2) RIMA Pressing Stations
(2) RIMA RS840 Trimmers (stacked)
(2) RIMA Bump Turns
(2) RIMA RS840 Trimmers (stacked)
(2) RIMA Combination Bump/Flow Turns (stacked)
(2) RIMA Vertical Belt Conveyors (up)
(2) RIMA High Level ‘Bridge’ Conveyors (stacked)
(2) RIMA Vertical Belt Conveyors (down)
(2) MM Listo Stackers
(2) SICK C4000 Electrostatic Blocking Units
(2) SMB Ai1 In Line Strappers
(2) SMB N4E Cross Strappers
(1) Trapo Stack Lifter
(2) Segbert VBS95 Electrostatic Blockers
(1) Segbert DZPA Palletiser (for double palletizing-direct prod)
(1) Segbert Automatic Pallet Feeder
