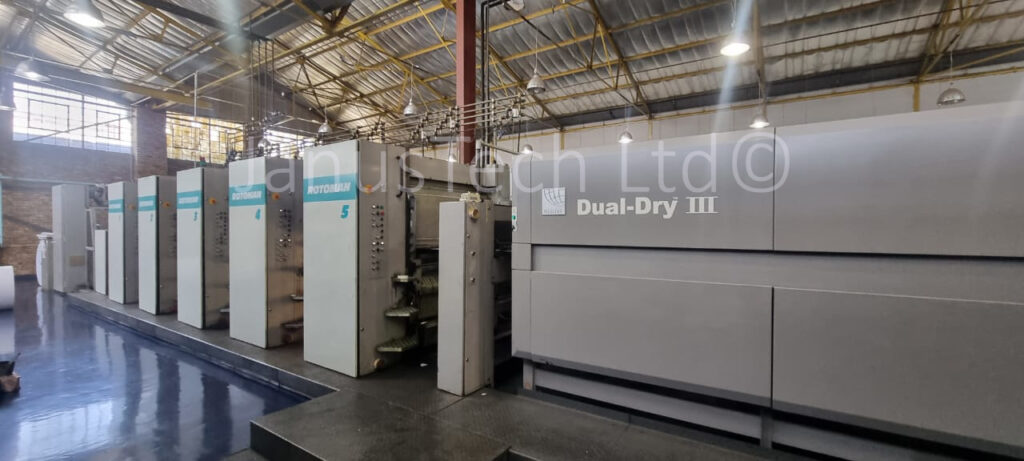

MAN Rotoman N 5-unit Heatset Web Offset Press

MAN Rotoman N 5-unit Heatset Web Offset Press

(1) Megtec DLP Flying Splicer
• Max reel Ø 960mm

(1) Automatic Web Up

(1) Infeed

(1) E&L Web Guide

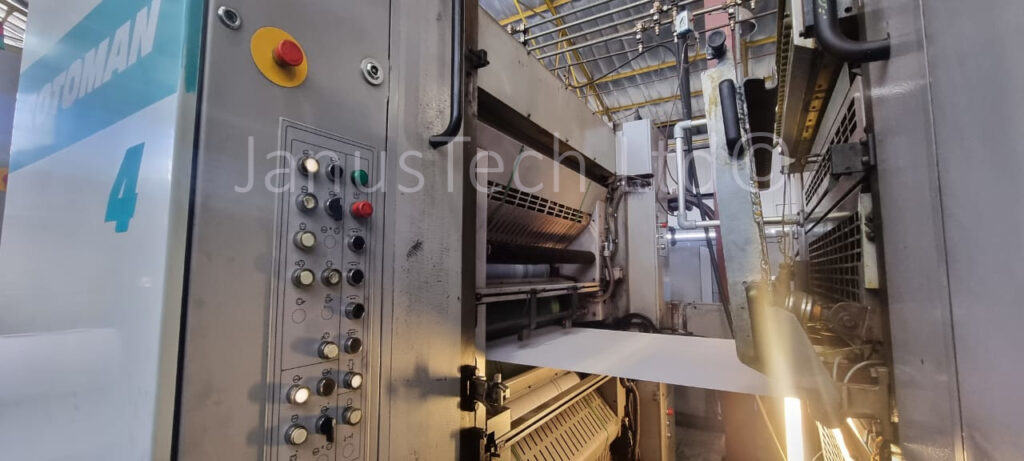

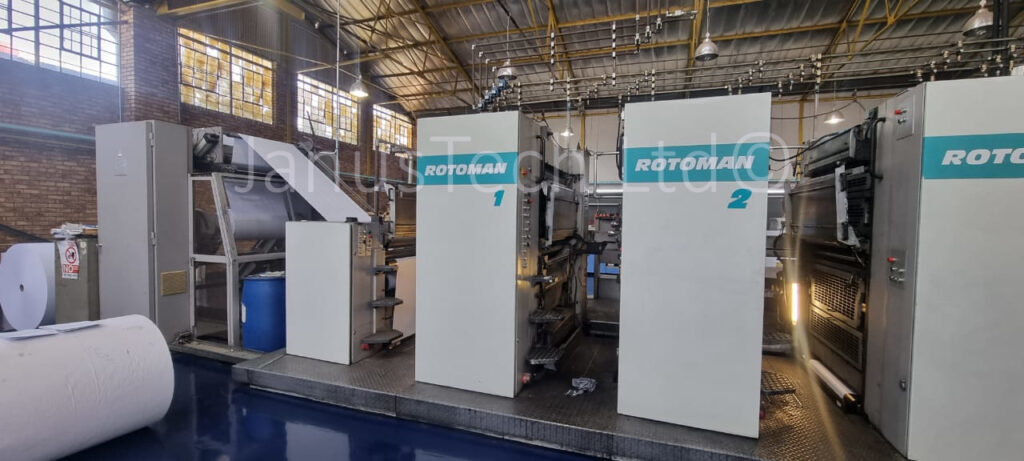

(5) MAN ROTOMAN printing units with:
• Shaft Drive with Independent Plating Motors
• Semi-Automatic Plate Loading
• Oxy Dry Automatic blanket wash system
• Technotrans BVS ink level control
• Unit Bypass Rollers under Units 1,2 & 3

(1) Web Catcher
(1) 10.8 M MEGTEC Dual Dry III Hot Air Dryer
• Integrated Afterburner

(1) MAN 6 Roll Chill Stand
(1) E+L web guide
(1) Silicone Applicator

(1) MAN Folder Superstructure
• Slitter
• Angle bars
• Web compensators
• Air loaded reverse former

(1) MAN Folder
• Auto Changeover
• A3 A4 A5 DP & Delta
• Tabloid delivery
• Quarter fold delivery

(1) PressTech Automatic Colour Register Control
(1) PressTech Automatic Cut-Off Register Control
(1) Planatol Combijet Gluing and Fold Softening
(1) PECOM Control System (Upgraded 2018)
(1) Technotrans delta.d Dampening Circulation System

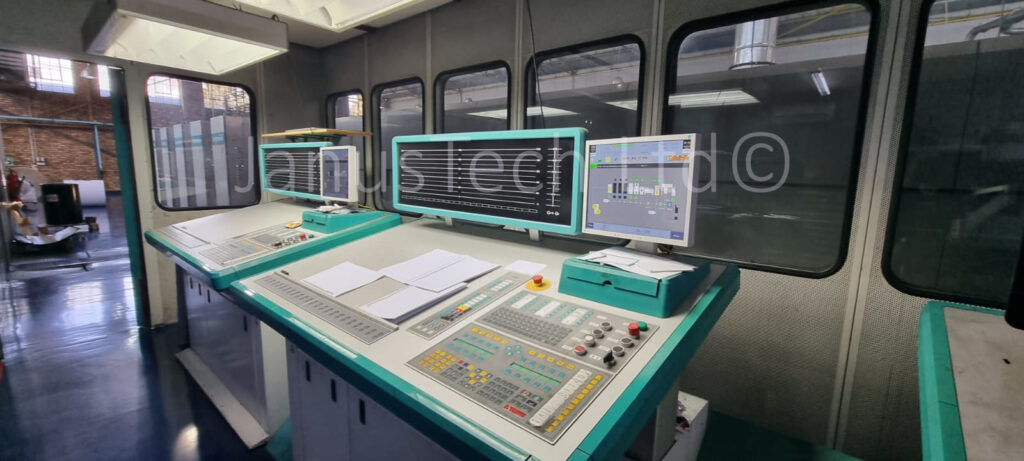

(1) Main Control Desk
(2) Colour Desks
(1) VITS Rotocut S Sheeter

(1) MAN Auto Plate Bender

(1) Sulzer Cooling Centre

(1) Set of Drawings and Manuals

Manroland Electronic Upgrade -2018

• New PPM Server with pre-setting interface IDI
• Retrofit of PECOM-X Control Desk Systems
• GenuBox for Online Diagnostics
• Update to PressMonitor from PressReport
• Retrofit of the Valve Blocks on four printing units
• DC-Drive retrofit light, Exchange of Omega Drive control
• Replace existing Elsa modem with online access via additional ACS

Post press equipment:

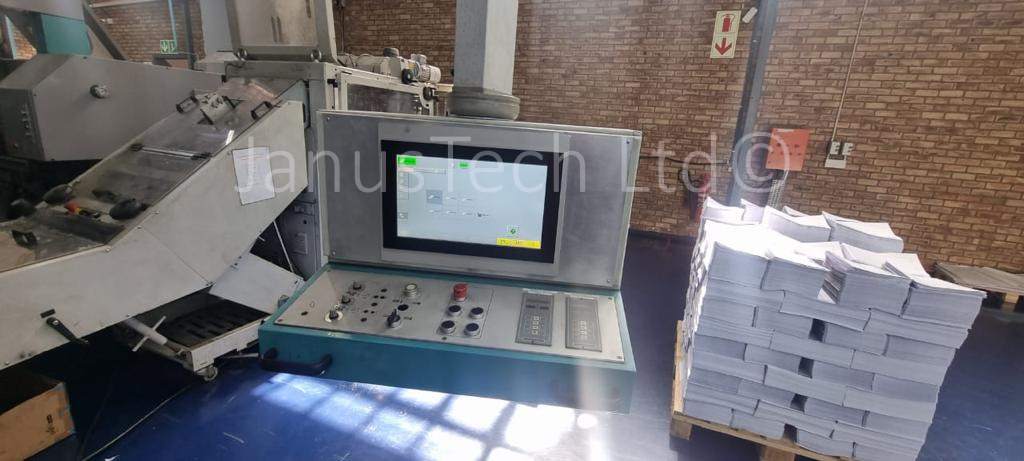

(1) Gammerler KL540 Compensating Stacker
