Drent VSOP 520 Variable Web Offset Press

Drent VSOP 520 Variable Web Offset Press

1 x Unwind unit
1 x Unwind shaft 76mm
1 x Unwind shaft 152 mm
1 x Web edge control
1 x Insetting unit
1 x Corona unit for one side of web
1 x Teknek contact cleaner
1 x Closed-loop web tension regulation

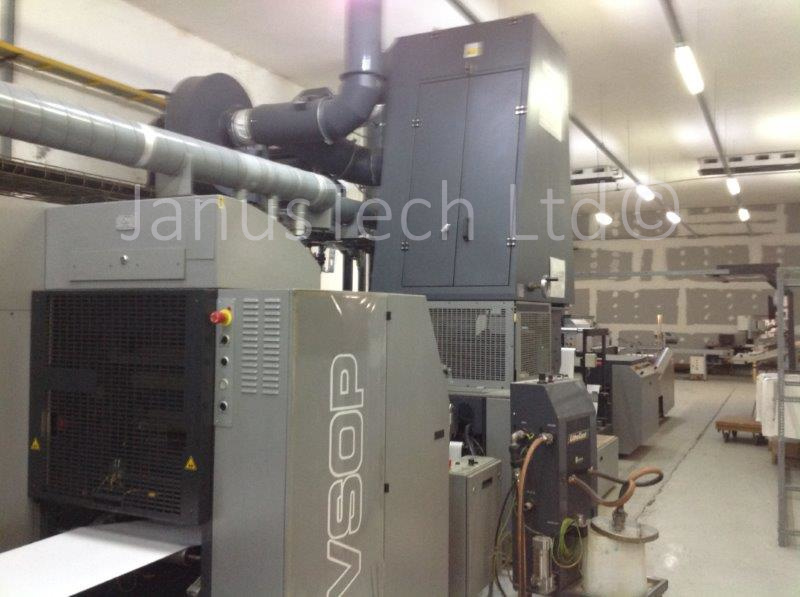

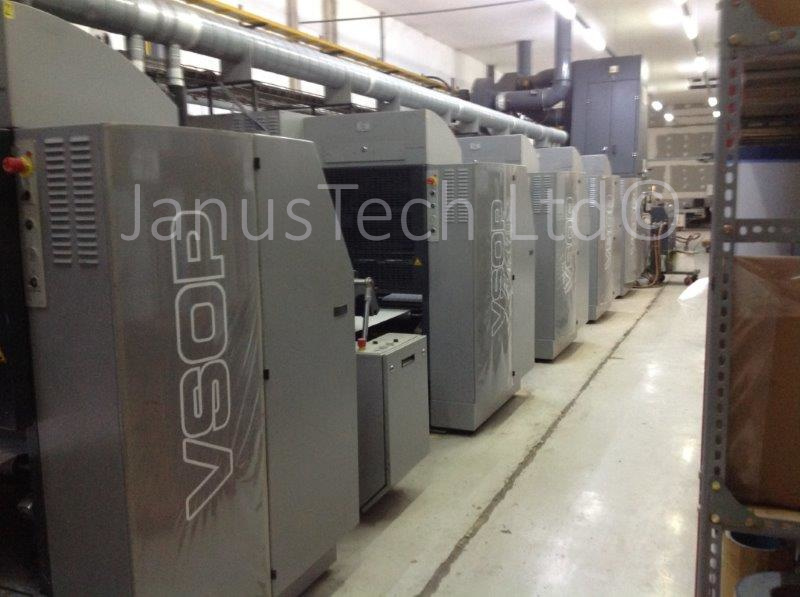

5 x VSOP printing tower conditioned
– VSOP sleeve sizes: 584mm, 548mm, 638mm, 610mm, 668,9mm, 710mm, and 760mm
5 x Ink agitators
2 x VSOP base frame L= 350mm
3 x VSOP base frame L= 750mm
2 x Pulling group + chill roller
2 x Rubber traction wheels in pulling group
2 x UV lamp support bracket for chilling cylinders
1 x Inkduct control for 5 printing towers
– Eltromat Imcon-3
– Print-Quality Control System
1 x 4 UV Curing Lamps for drying UV inks
5 x Ink misthood IST
1 x Heat exchanger for UV installation
1 x Dampening unit, including alcohol doser + mixer aquados
1 x Ink Roller Temperature Control Unit
1 x Refrigeration unit for chilling rollers
1 x Multi-Purpose Frame with 1 drive

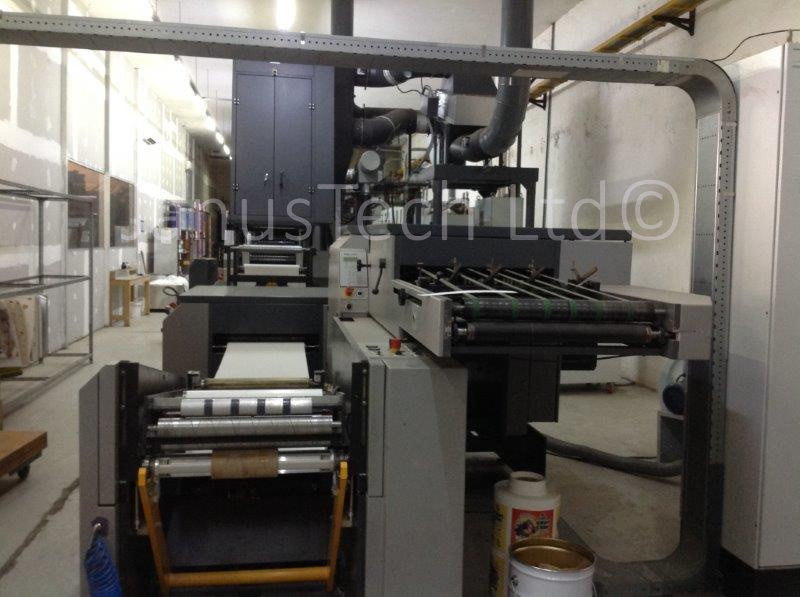

1 x Flexo printing Group
1 x Cylinder for full varnishing 24″
1 x Ceramic screen sleeve 6 cm3/m2
1 x Ceramic screen sleeve 9 cm3/m2
1 x Sleeve adaptor 20 1/6″- 25″
1 x Pump for flexo unit
– Cylinder for spot varnishing in mm
– Size gear for mm flexo
1 x Frame with 36″chilling roller after (UV) flexo
1 x Mounting frame for UV lamps on pulling group after flexo
1 x Flexo hot-air dryer for water-based inks
1 x Gravure printing with hot air dryer
– Web-Video system
1 x Base for web video system
1 x Detection stroboscope for varnish
1 x Outfeed
1 x Edge trimming equipment
1 x Drent rewinder
1 x Rewind shaft 76mm
1 x Rewind shaft 152mm
– Electric components

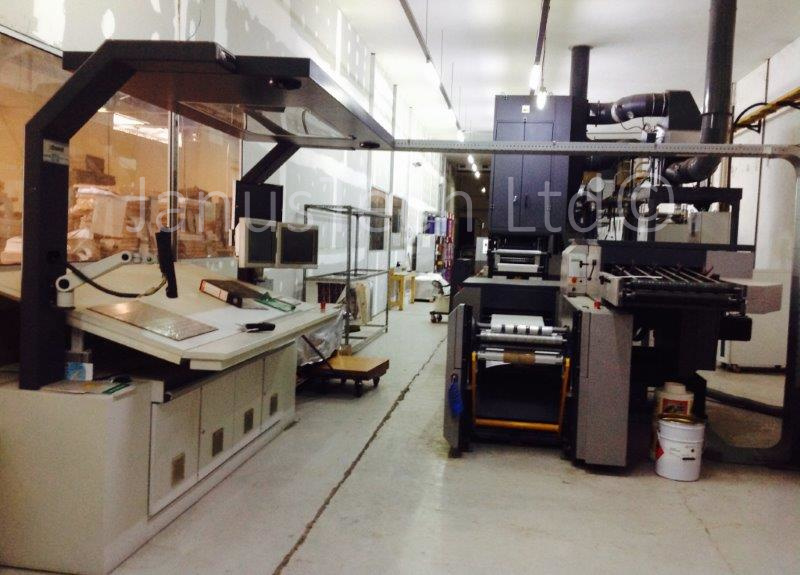

1 x E-desk (main panel)

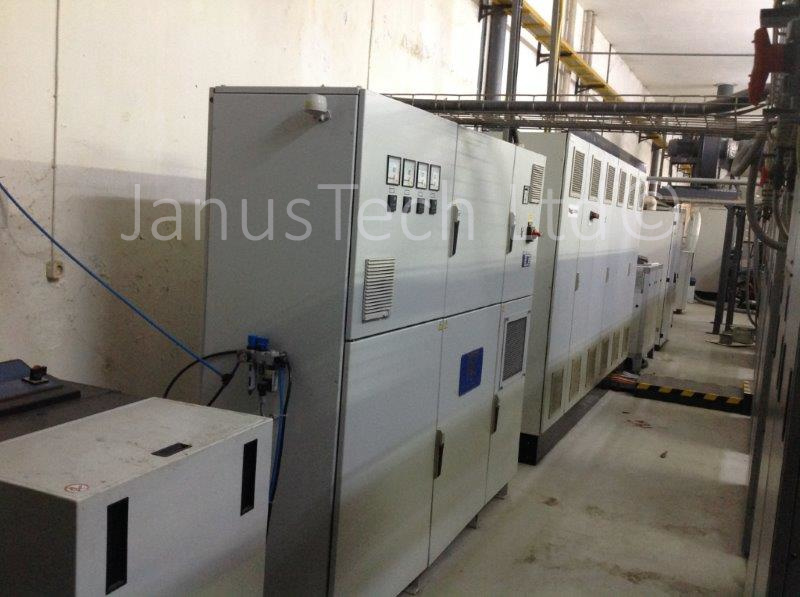

1 x Main cabinet
2 x Transport rack for sleeves

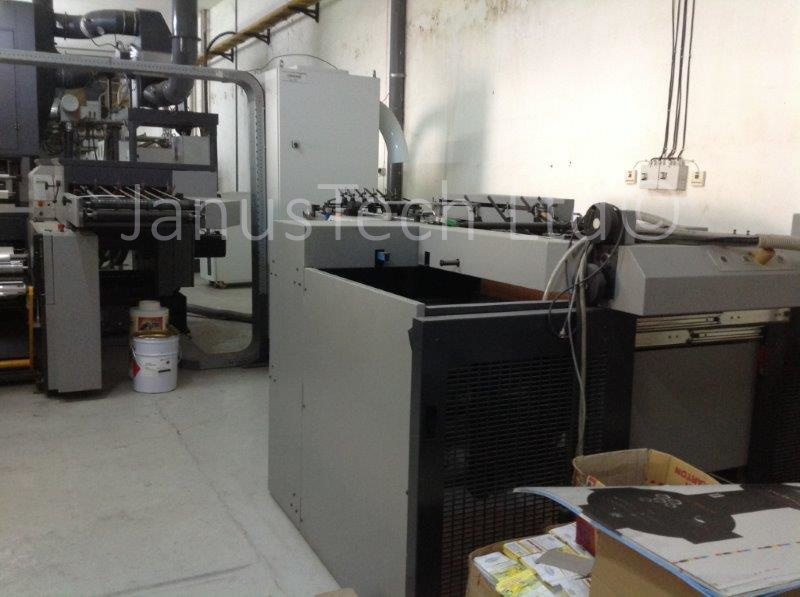

1 x Automatic plate bender, with camera system

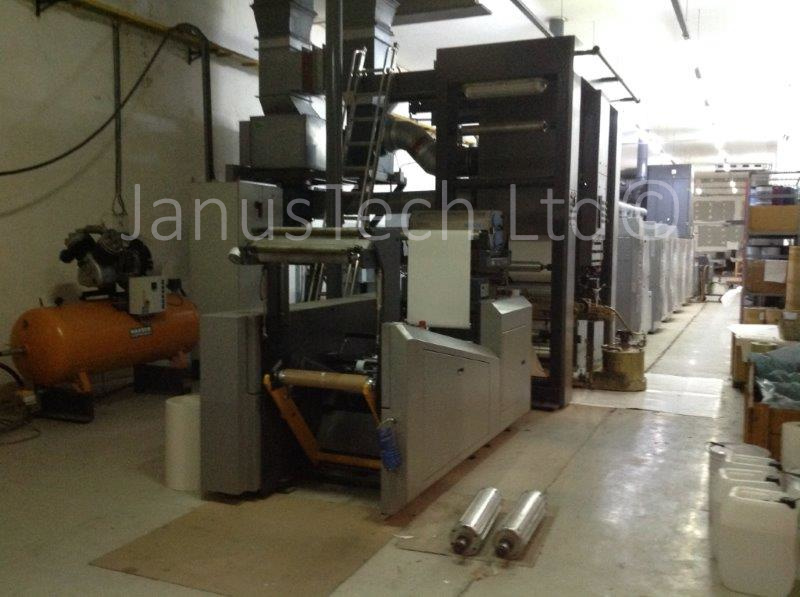

1 x Compressor
1 x Suction device for 1 connection point
1 x Sleeve service station
