Magazine & Commercial Web

JanusTech supplies high quality and cost effective capital equipment solutions to enable today’s web printers to face the challenges of tomorrow. We will source equipment, refurbish, install, commission and fully project manage the entire process from beginning to end.

KBA Compacta C16 Heatset Web Offset Press

Reference:81017


Age:2011-2012

Cut Off:620 mm

Web Width:420 - 1,000 mm

Max Speed:55,000 CPH

Available:Immediately

Call JanusTech today on +44 (0) 1565 723 538

Or fill in the enquiry form

Enquire Here

Comprising of:

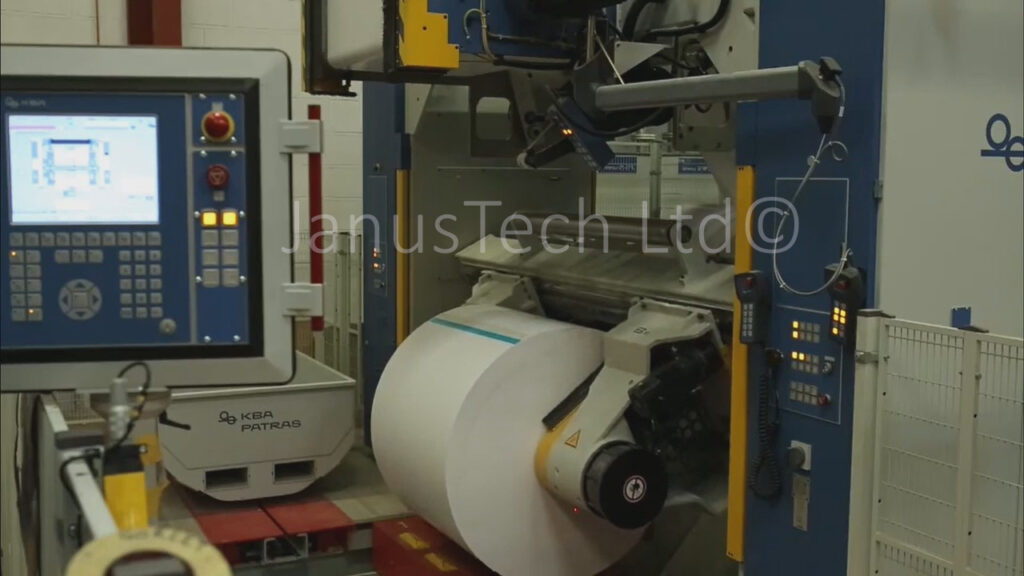

(1) KBA Patras A Reel Handling
• Unpack station & auto reel loading
(1) KBA Pastomat C50 Splicer
• Core drive. Integrated infeed & web guide
(4) KBA C16 Printing Units
• Minigap technology
• Fully automatic plate change
• Baldwin/ Impact Fusion blanket wash
(1) 10.6M Contiweb Ecoweb Hot Air Dryer
• No integrated afterburner
(1) KBA KWS 3 Roll Chill Stand
Silicone Applicator
E&L Web Guide
(1) KBA Folder Superstructure
• One air loaded full width former
• One air loaded half width former
(1) KBA P3 Stacked Folder
• A3, A4, 2 x 8pp A4, 4 x 4pp A4, d.p, Delta
(1) Planatol Opimatic Combijet 9NET Gluing System
(1) Grafikontrol CR25 – Automatic Colour Register System
(1) Grafikontrol CR25 TPLT – Automatic Cut-Off Register

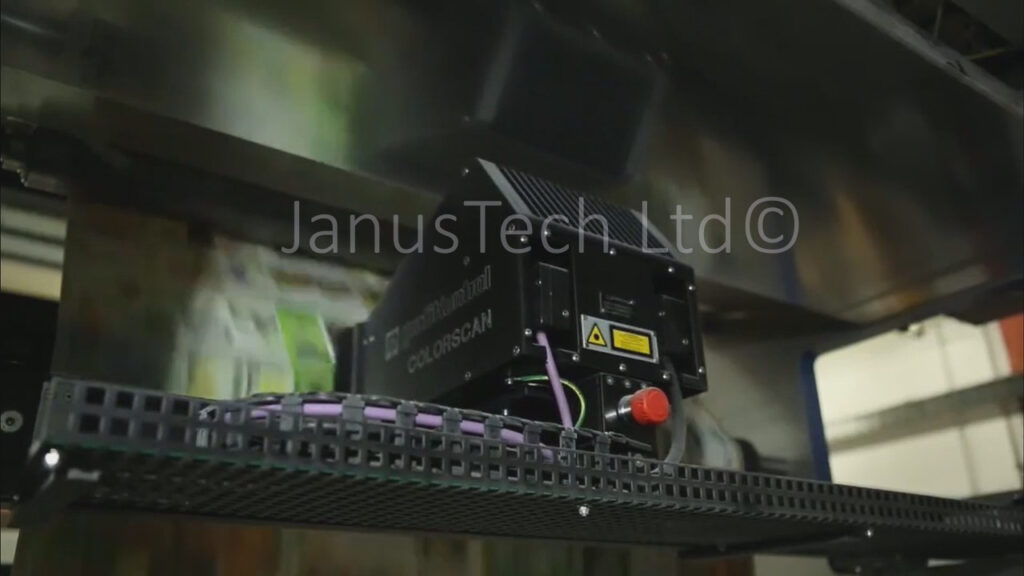

(1) Grafikontrol Colorscan – Closed Loop Colour Control
(1) Technotrans Delta d.160W Mixing/Recirculation for Dampening
(1) Technotrans FZT 350K Additive Dosing Unit
(1) KBA Main Control Desk

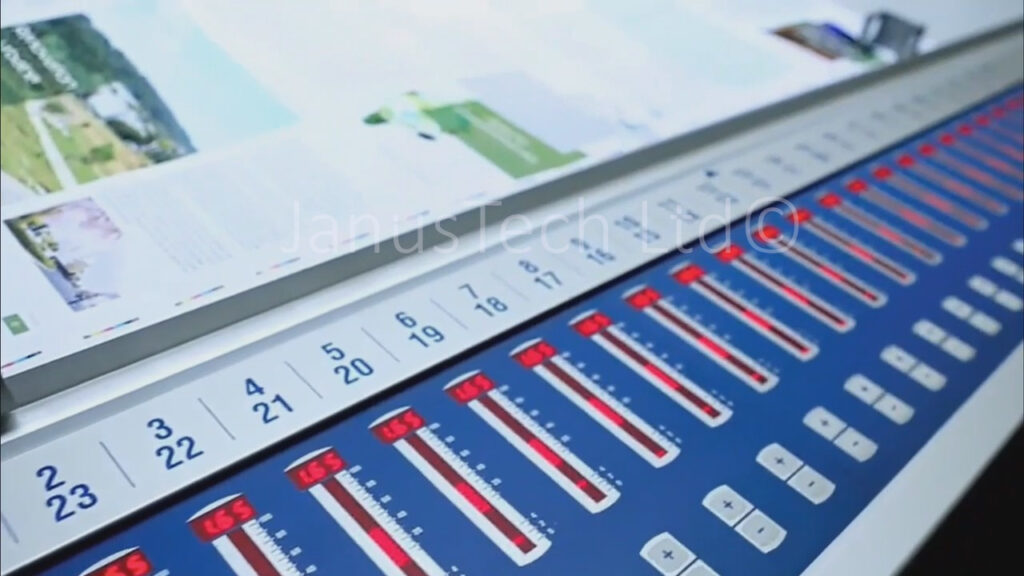

(2) KBA Colour Desks
(1) KBA Drivetronic Press Control and Drive System
(1) Central Refrigeration Unit
• Bail External cooling towers
(1) Beil AKA 200-SL Plate Bender
(1) Beil RSA 200-M Blanket Bender
(1) Spare set of rollers
(1) Set of Spare Parts
(1) Set of Drawings and Manuals

POST PRESS:

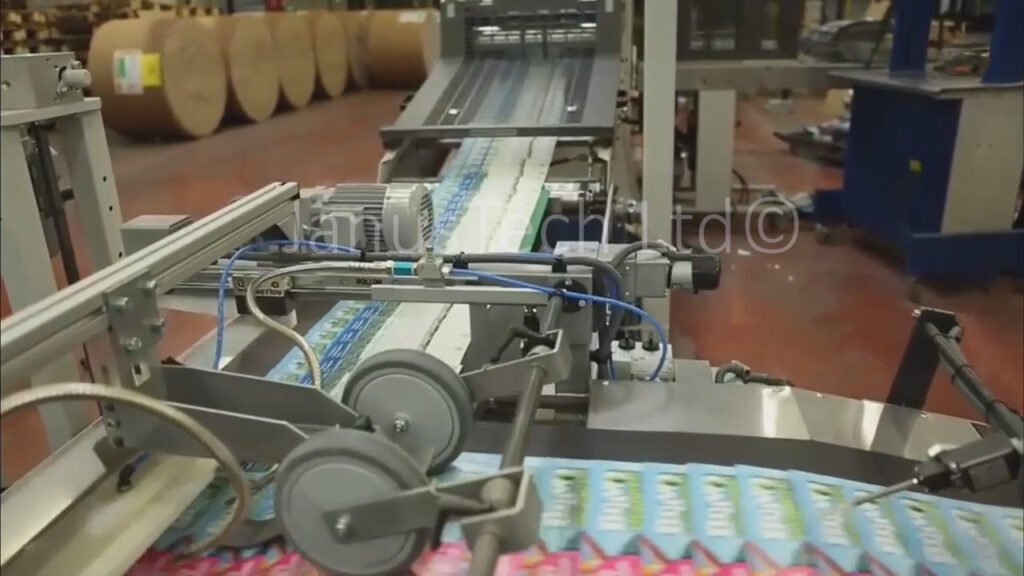

(1) Exit Conveyors
(1) Rima Jogging & Pressing Station
(2) Rima RS831 Rotary Trimmers
(2) Rima Bump Turns
(1) Rima RS36S Compensating Stacker
(1) Rima Electrostatic Blocking Unit
(1) Cross Strapper

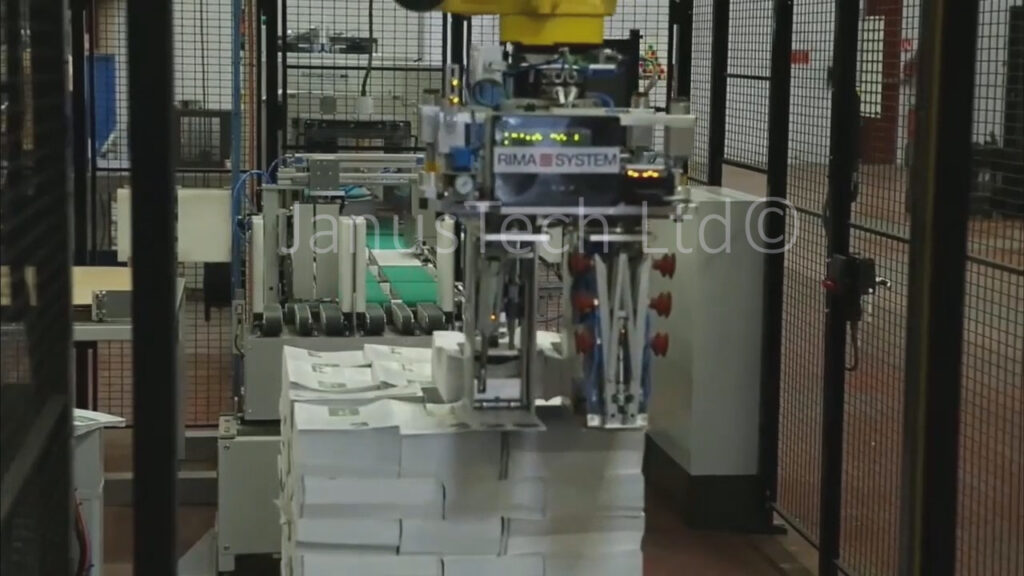

(1) Rima Pick Up Station

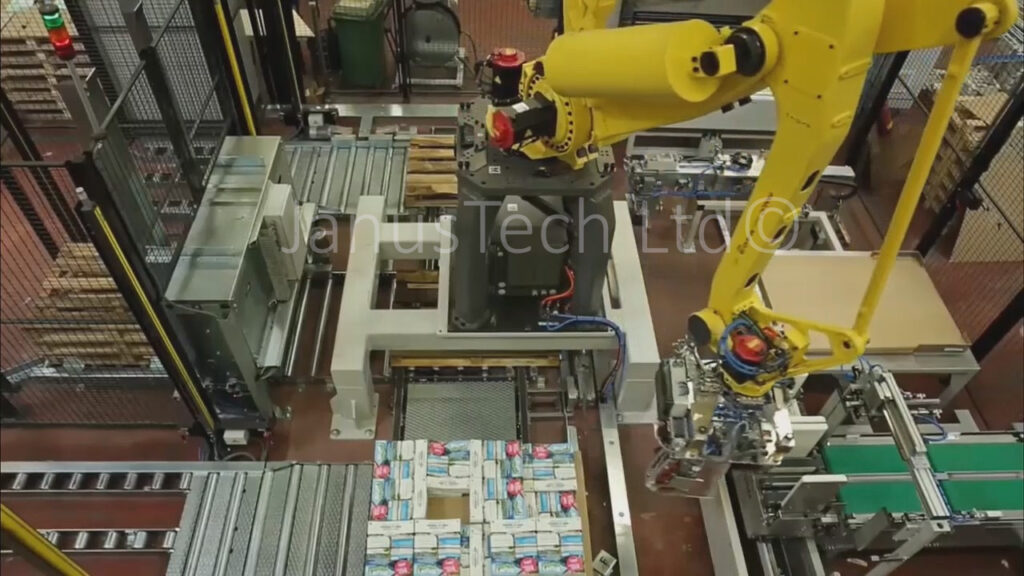

(1) Rima/Fanuc M410i Robotic Palletizer
• For logs and bundles
• Auto Pallet Loading
• Auto Pallet Ejection
(1) Overhead Conveyor to Log Stacker
(1) Rima RS610 Horizontal Log Stacker

OPTIONAL EQUIPMENT
(1) External Afterburner
