MAN Lithoman II Web Offset Book Press

Reference:80959


Age:1998

Cut Off:2 x 401 mm

Web Width:800-1060 mm

Max Speed:35,000 CPH

Available:Immediately

Call JanusTech today on +44 (0) 1565 723 538

Or fill in the enquiry form

Enquire Here

Videos


Comprising of:

MAN Lithoman II Web Offset Book Press

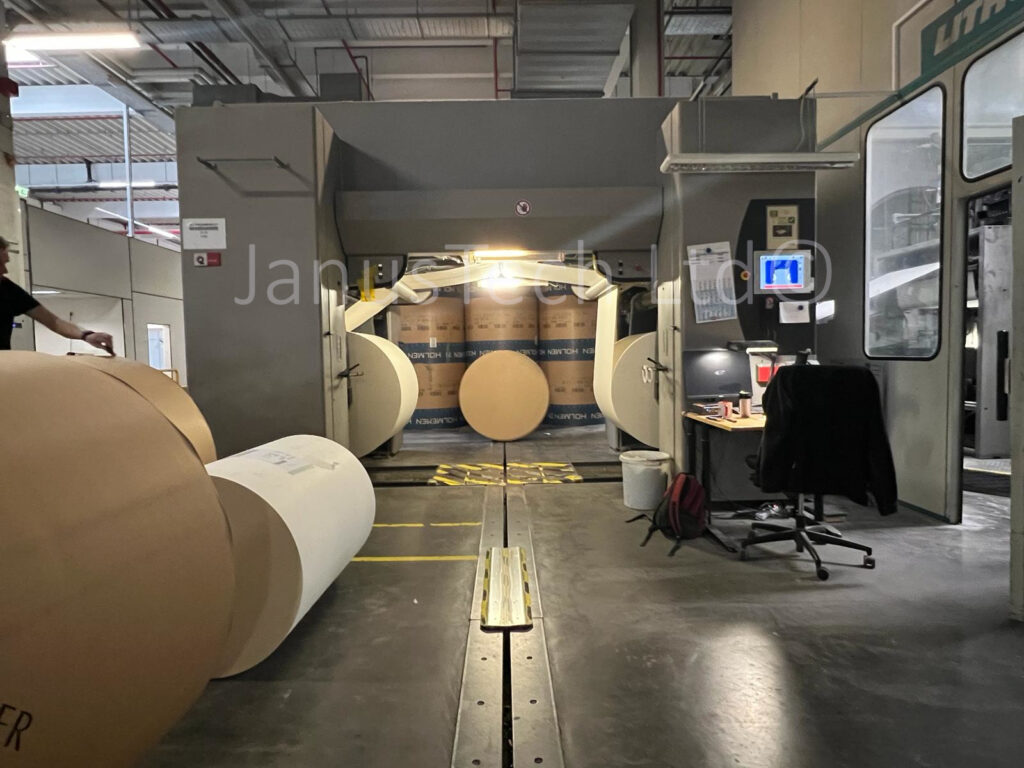

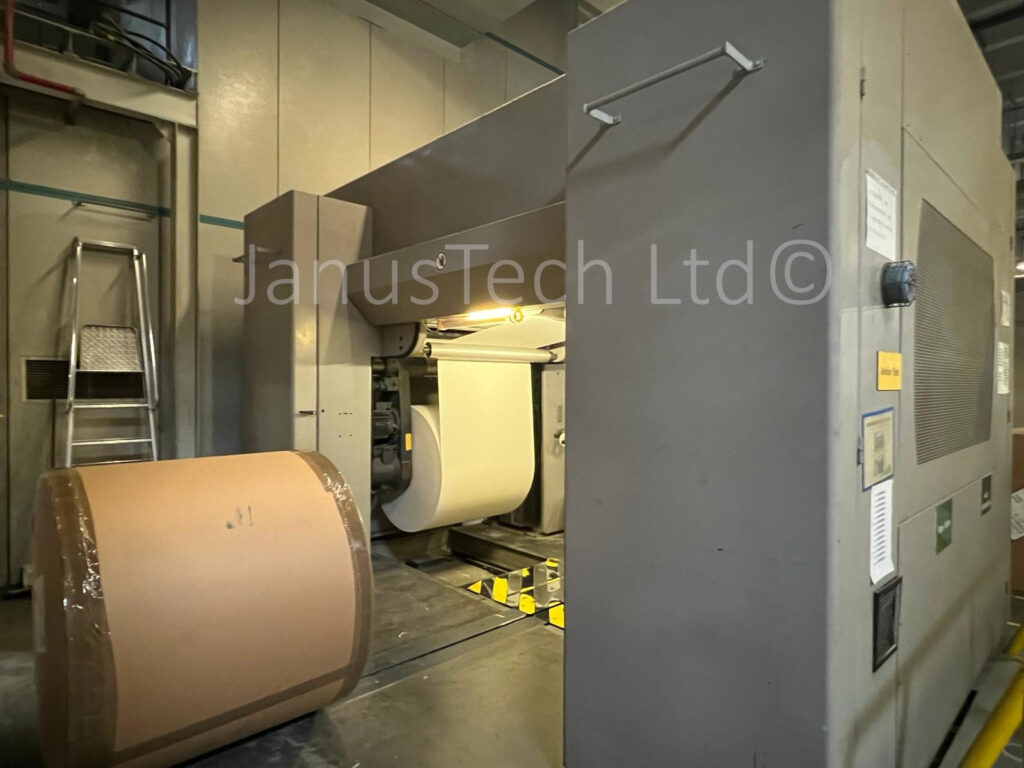

(1) Stock Contiweb SH45-OP1020
• Webdata paper consumption
• Auto reel loading

(1) MAN Infeed
• E&L Web Guide

(1) Spreader Roller

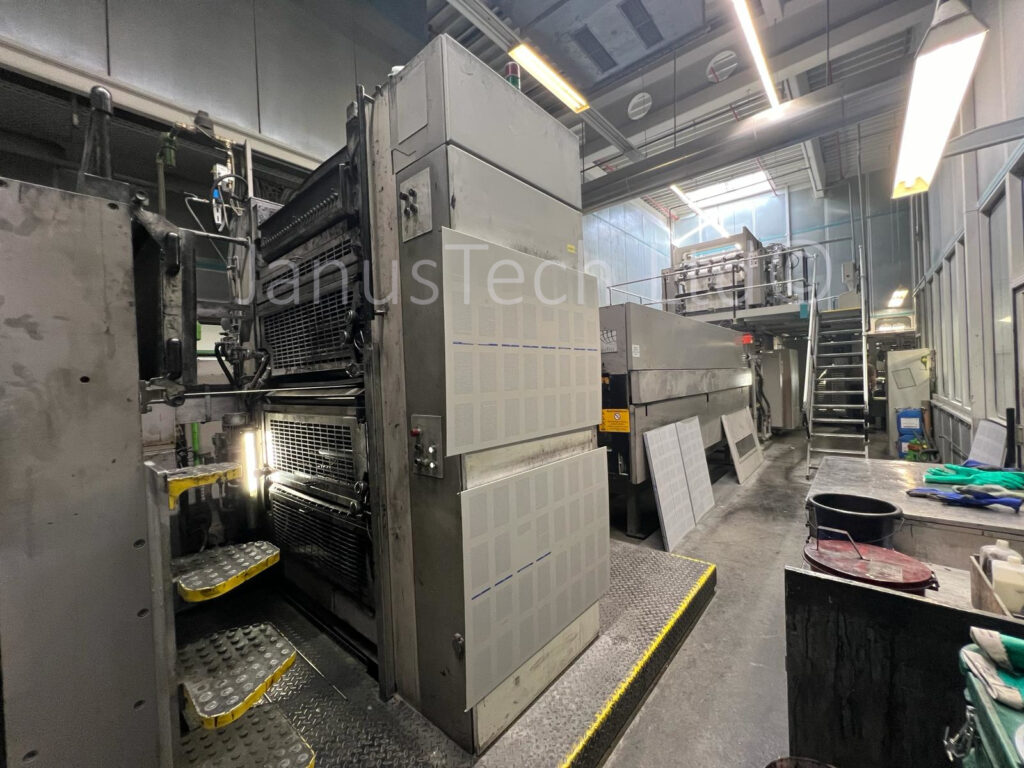

(1) MAN Lithoman Printing Unit
• OxyDry RO blanket wash
• BVS automatic ink levellers
• Semi-automatic plate loading
(1) Technotrans Dampening Water Circulation

(1) Grafotec Web Severer

(1) 4M MEG Sigma Plus 40/1320 Hot Air Dryer
• No afterburner

(1) MAN 3 Chill Roll Stand
• Eltex WM60 Electrostatic Remoistening System

(1) E&L Web Guide

(1) WEKO Silicon Applicator

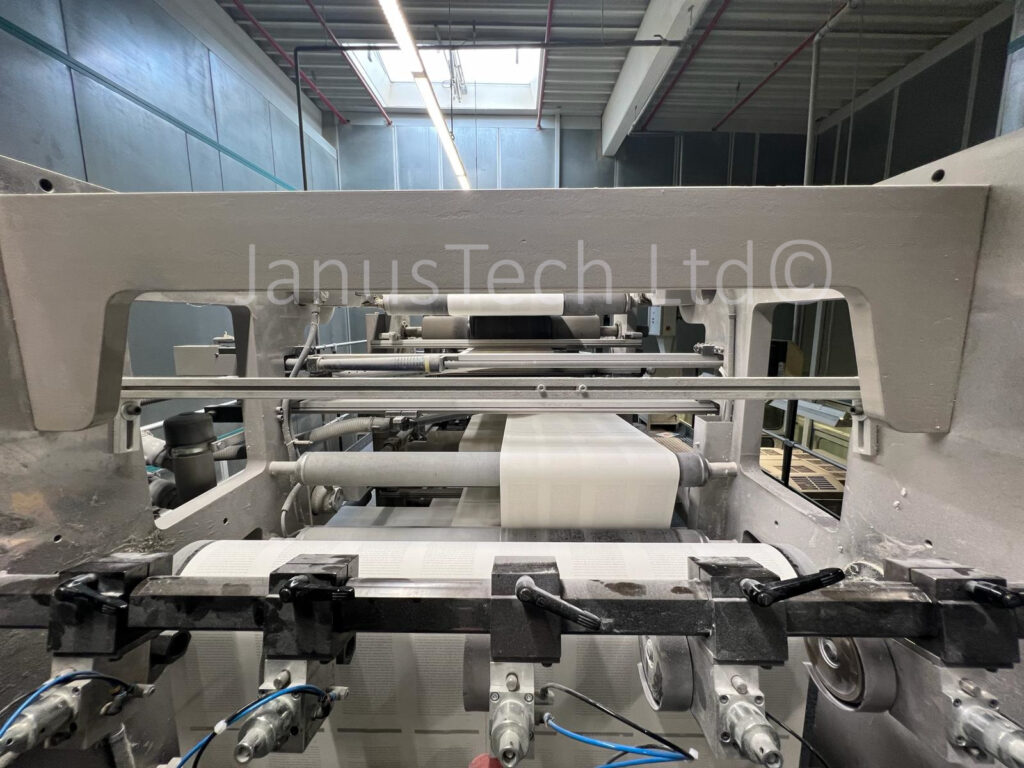

(1) MAN Folder Superstructure
• 1 Slitter
• 2 Sets air loaded angle bars
• 2 driven ribbon pull rollers
• 2 web compensators
• 1 Air loaded former

(1) MAN FLB32 Pinless Book Folder
• Two piece knife cylinder
• Five around collect cylinder
• Four around transfer cylinder
• Single delivery for 2 x 16pp straight or 2 x 32pp collect

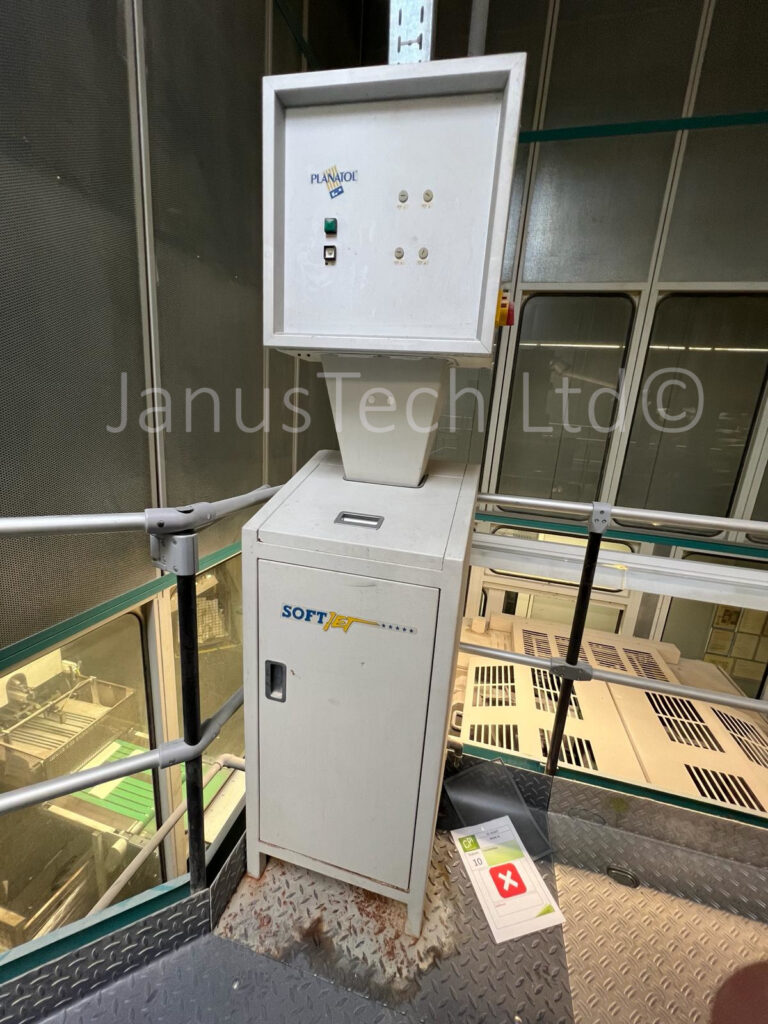

(1) Planatol Softjet Fold Softening System
• 4 Heads

(1) Crosfield Webatron 310 Cut-Off Register Control

(1) Folder Control Sation

(1) Main Control Desk

(1) Colour Desk

(1) MAVO C Colour Control System

(1) Electrical Drive System

(1) Sulzer Temperature Control Unit

(1) MAN Fully Automatic Plate Bender

(1) Set of Drawings and Manuals

Post Press

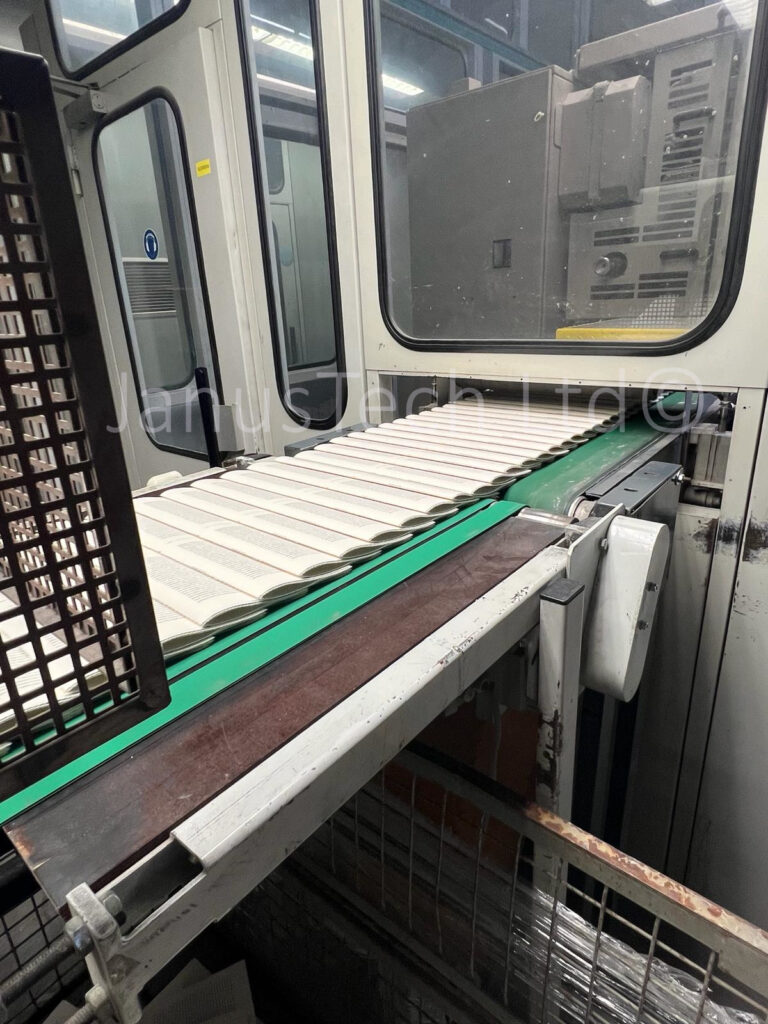

(1) Exit Conveyor

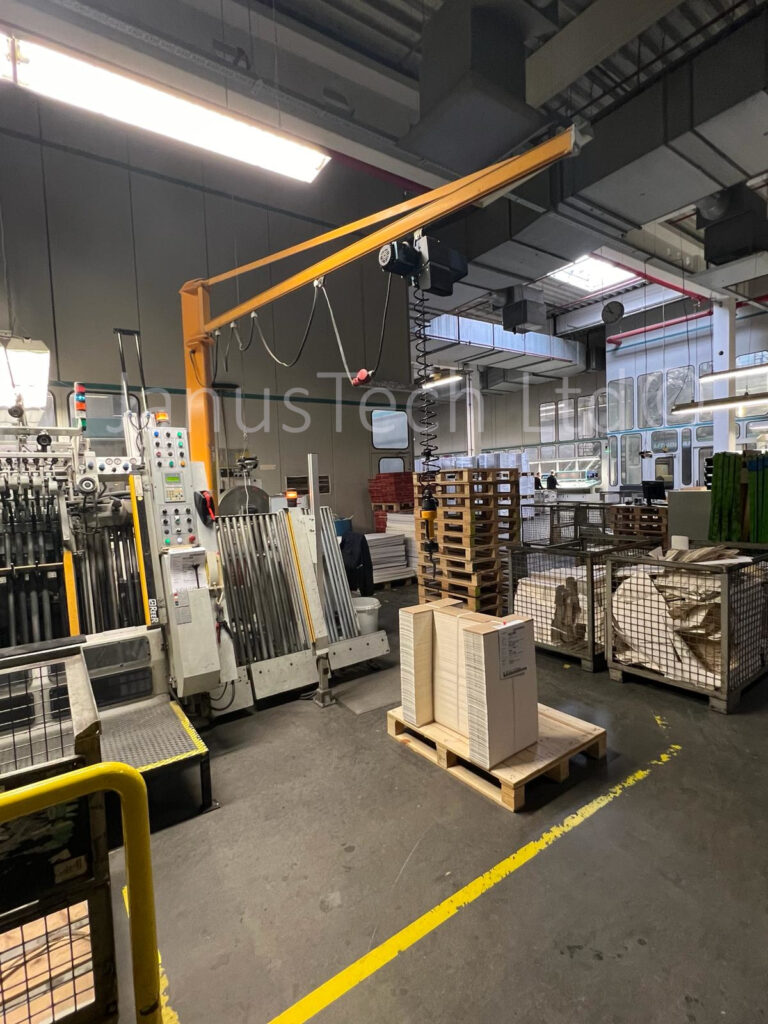

(1) Civiemme ST280 Log Stacker

(1) Gantry Log Lifter

PRODUCTION

This press is specifically designed for the production of long grain ‘B’ Format size (129 x 196mm) books.

Straight Production: 32pp produced as 2 Up 16pp
Collect Production: 64pp produced as 2 Up 32pp

Page width can vary according to web width and no of ribbons:

800mm web width: 32/64pp trimmed page width 97mm
1060mm web width: 32/64pp trimmed page width 130mm

800mm web width: 24/48pp trimmed page width 130mm
1060mm web width: 24/48pp trimmed page width 174mm
