MAN Uniset 75 Coldset Direct Drive Web Offset Press

Equipment Comprising of:

(1) MANUload Manual Reel Feed

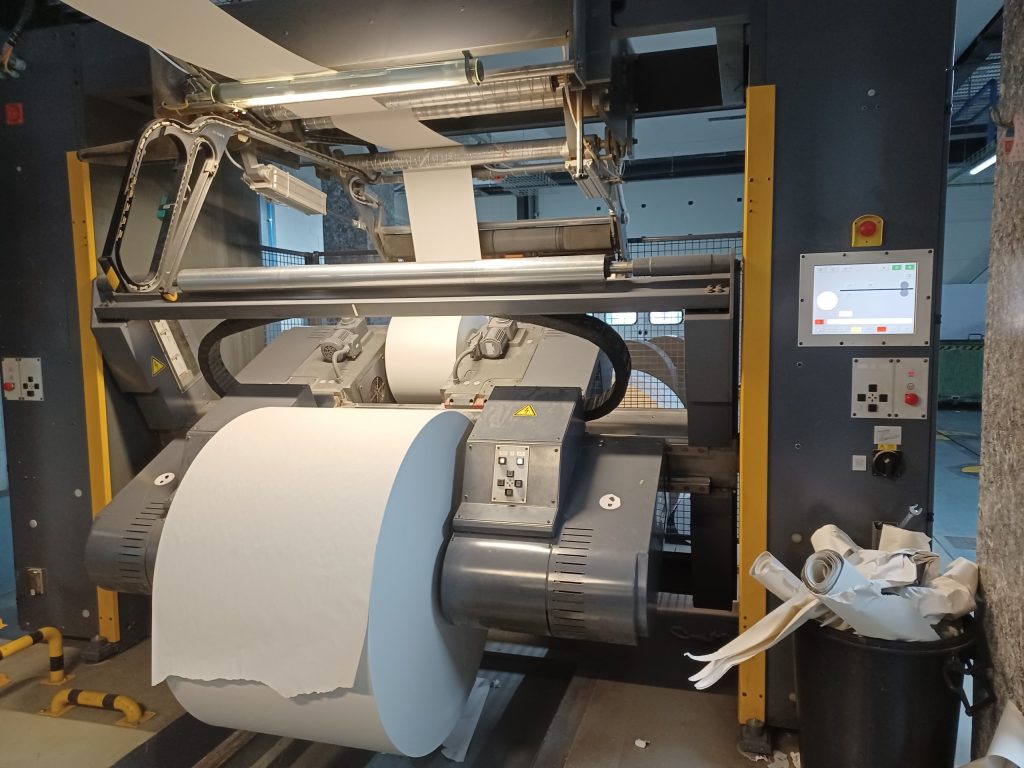

(7) MAN Roland Splicers
• 2 Reels
• Max diam 1,270 mm
• Fully automatic gluing while machine is running
• Independent Splitarm system

(7) Fully Automatic Web Up Devices
• Chain with magnetic blade from splicers to RTF

(1) Spreading roller

(1) Web Guide

(1) Web severer

(1) Automatic webbing-up system

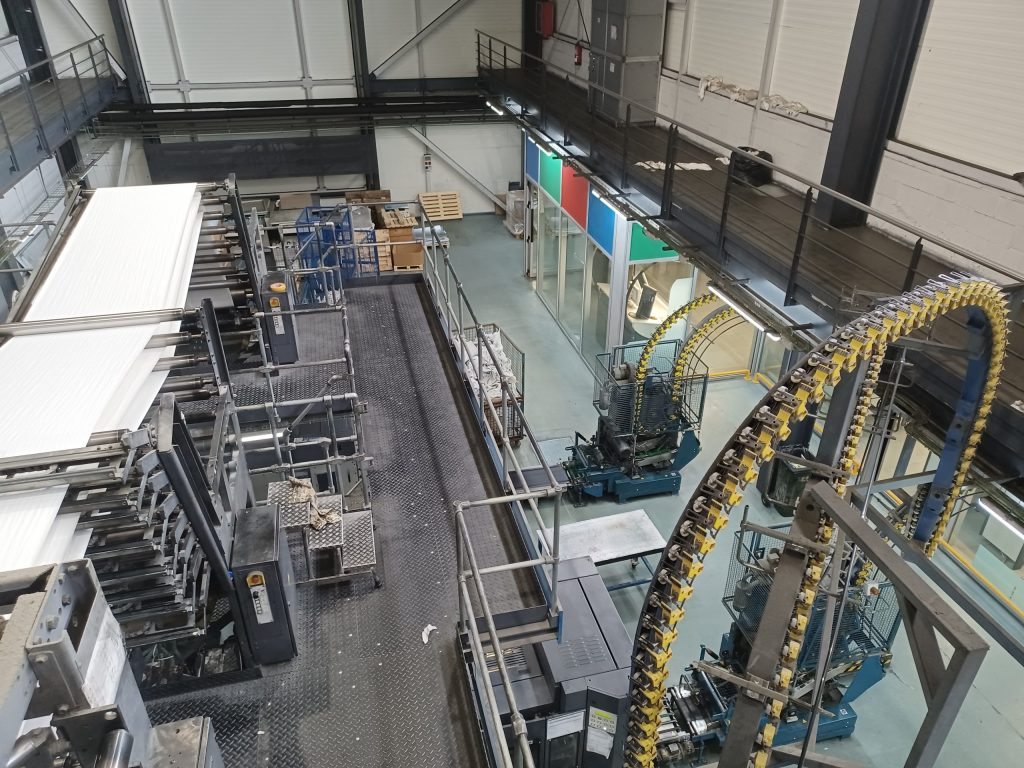

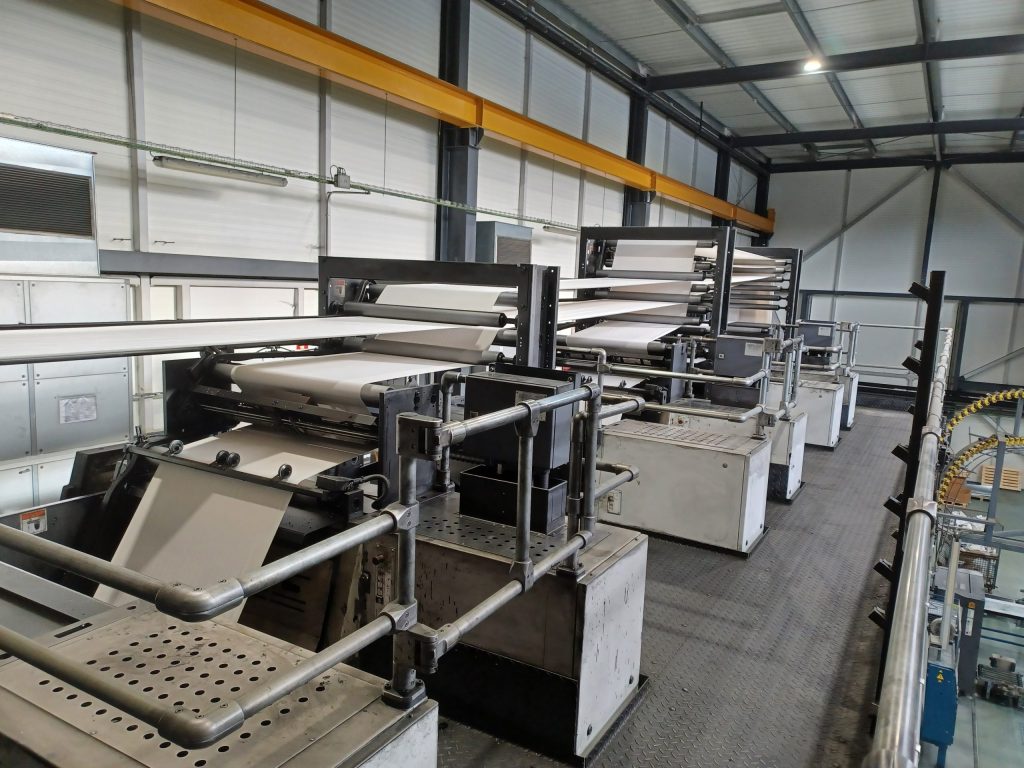

(3) MAN Uniset 75 4H Printing Towers for Coldset Printing
• Designed as towers for 8 ink batteries with 2 superimposed H printing units
• 8 printing units in each case for blanket/blanket printing and vertical web pass
• Printing units that can be decoupled separately (6 couplings)
• Plate and blanket cylinders housed without play in three-ring bearings
• Blanket cylinders with blanket clamping bar
• Lateral and circumferential registers with individual motorized adjustment during the run
• Remote adjustment of ink zones with feedback from the position of the ink blades to the centralized control desks
• Lower ink blade
• Turbo dampening system
• Roller washing devices
• Introduction kit
• Paper card device

(3) MAN Uniset 75 Printing Towers Commercial Option on 3 Towers (above)
• Bar lock-up system
• Third ink forme roller
• Ink transfer
• Ink oscillator roller
• AC drive system with individual drive per double printing couple, shaftless drive

(1) MAN Uniset 75 Print Tower 4 H Printing Tower – for 1 x 4/4, 2 x 2/2, 4 x 1/1
• 8 printing units in each case for blanket/blanket printing and vertical web pass,
• Separately detachable printing units (6 couplings),
• Plate and blanket cylinders housed without play in three-ring bearings
• Blanket cylinders with blanket clamping by bar
• Lateral and circumferential registers with individual motorized adjustment on the run
• Remote adjustment of the ink zones with feedback of the position of the ink blades to the centralized control desks
• Lower ink blade
• 6 interchangeable ink trays for quick ink change in combination with two-page-wide
• interchangeable ink trays with 12 cups and 2 carriages
• Centrifugal Turbo-dampening
• Roller washing devices
• Four web feeds
(1) Technotrans Gamma.B200 Dampening and Recirculation
• Water tank
• Recovery device
• Mixing device for additives
• Dosing pump and water return filter

(1) Full Web Guide
• Guide rollers
• Paper regulation
• Rewind lock
• Print to Cut with motorised remote adjustment
• Web break detectors

(1) Third Folding Device with Longitudinal and Transverse Perforation

(1) Folder Superstrutcture FA1-70
• 1 Traction Device laced to the right of the folder
• 7 web compensators

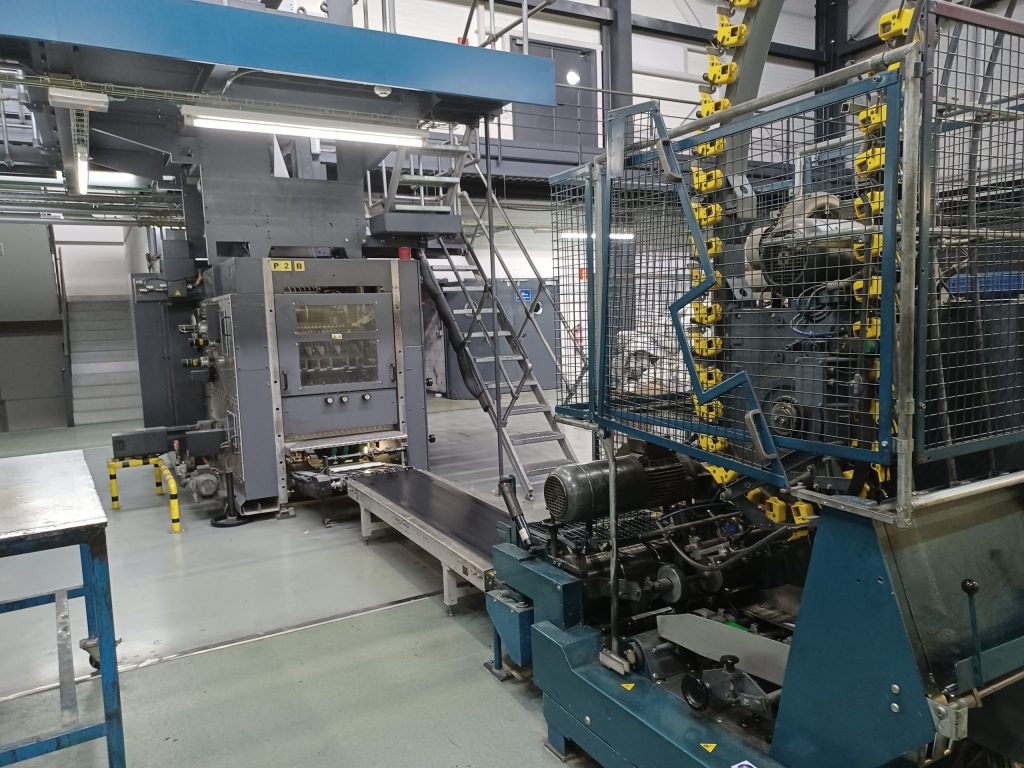

(1) MAN Roland KFN 80 2:3:3 Jaw Folder
• Designed for the installation of Tolerans stitcher

(1) Folder Superstructure FA1-70

(1) MAN Roland KFN 80 2:3:3 Jaw Folder
• Designed for the installation of Tolerans stitcher
• Quarter fold

(1) PECOM Basic System

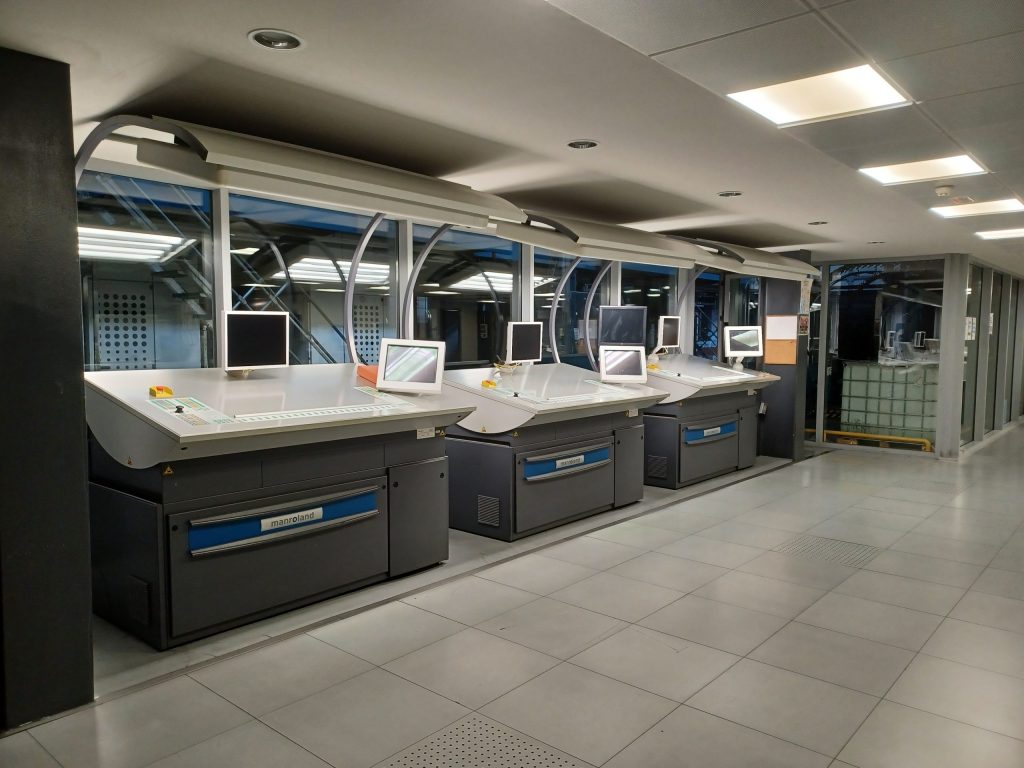

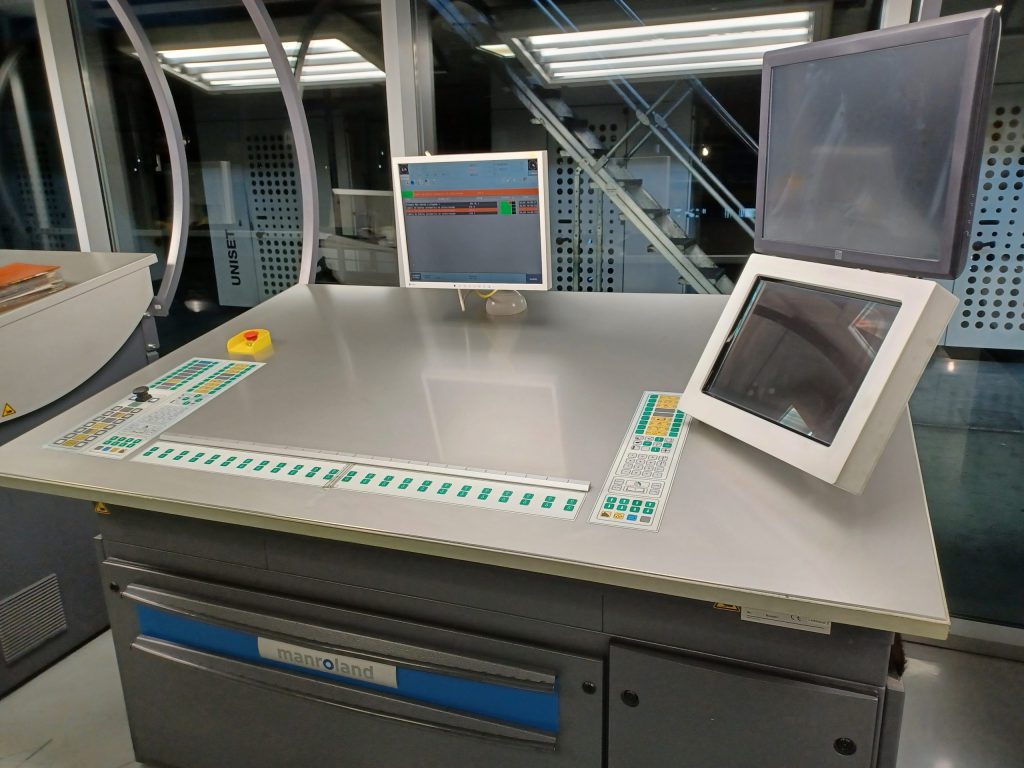

• 3 Control desks
• Colour graphic screen 22”
• Central section control
• Decentralised electronics process
• 1 High-sped processing computer

(1) PECOM PressManager PPM

(1) Image Data Interface

(1) QI Press Controls Register System

(1) PECOM basic drive and control equipment with main control server and Baumüller diagnostic system

(1) Main control centre with CIP 3 interface, PECOM Colour

(1) Additional control desk

(1) Nela VCP Evolution Plate Bender

(1) Manual plate punch

(2) Baldwin dampening solution supply and preparation

(1) Technotrans Automatic Ink Supply and Levelling System
• Ink Pumps with five ink 1500 Kg in tanks (2 black)
• Ink sensors
• Ink metering valves

(1) Set of Manuals & Drawings

(1) All spare Parts

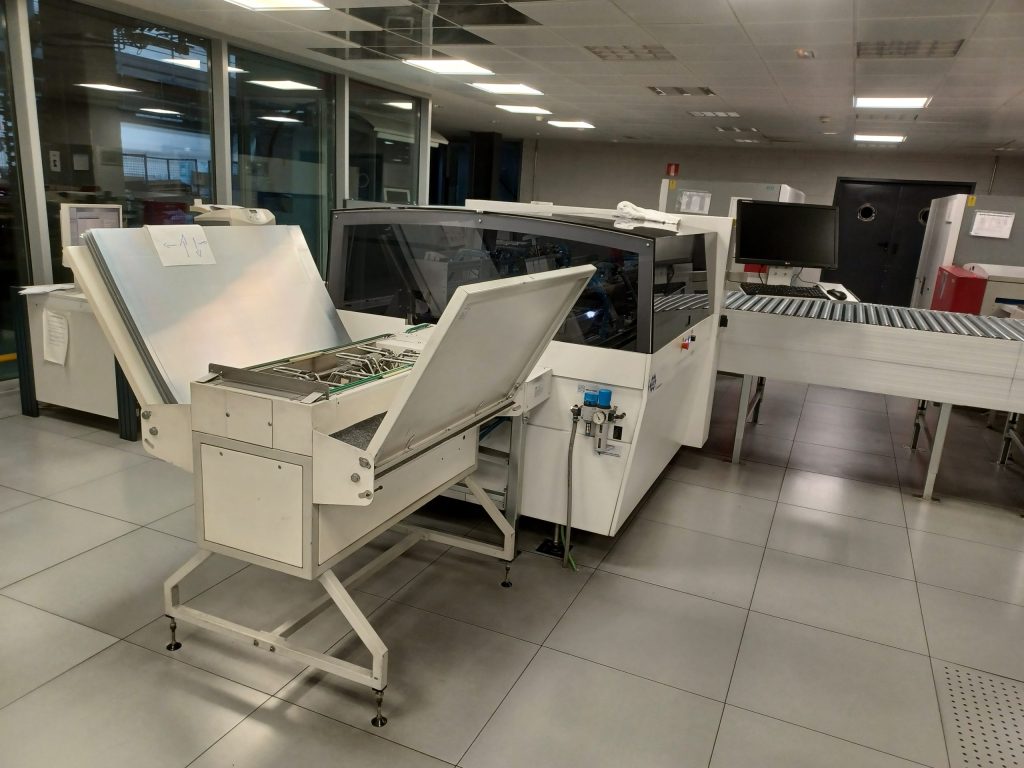

(1) Pre-Press Equipment

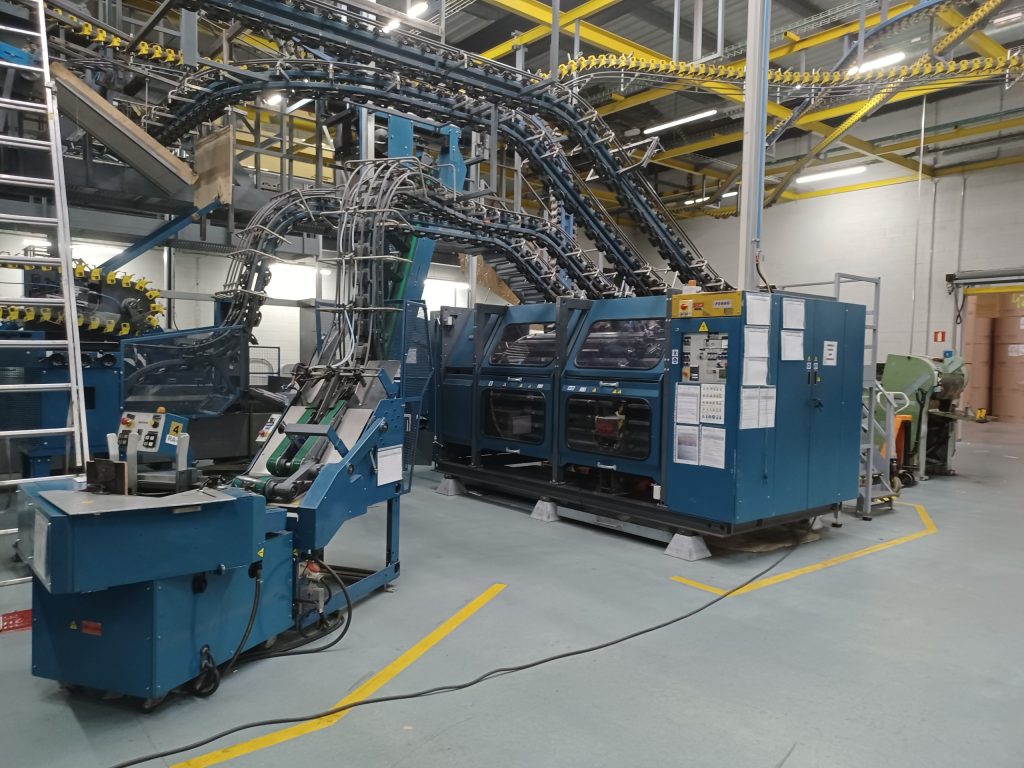

(1) Post Press Equipment
