SHM Accutec 1450 mm Wide Cut-to-Register (CTR) Sheeter – Sold

SHM Accutec 1450 mm Wide Cut-to-Register (CTR) Sheeter

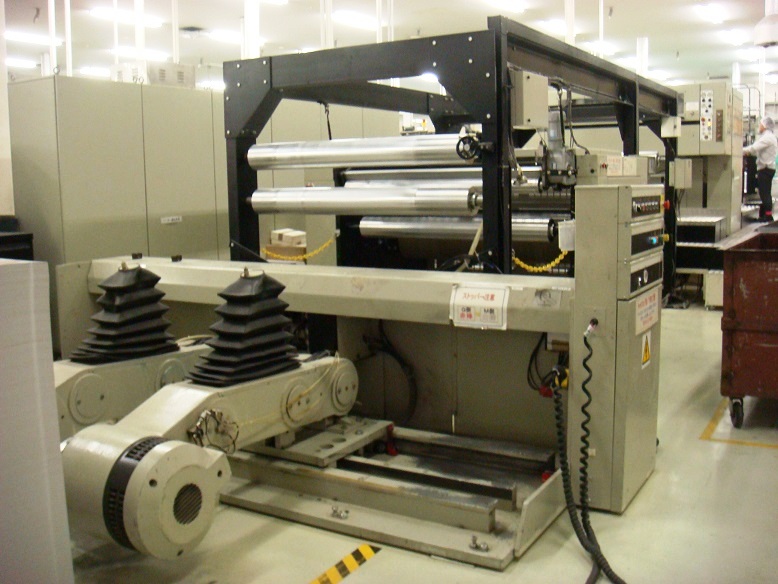

(1) SU 400 Shaftless Unwind Stand

(1) Auto Dance Roll Tension Control Unit

(1) Auto Web guide unit

(1) Manual Edge Type and Motorised Roll type (carton board) De-curling units

(1) Trim Waste Removal System

(3) Station Slitting Unit

(1) Single Rotary Knife Cutting head with Twin Motor AC Drives.

(1) Cut to Print Register Control

(1) Knife Air Jets

(1) Vacuum Tail arrest

(1) Anti-static Eliminator equipment

(1) High Speed and overlapping tape sections

(1) Auto Reject Deflector gate

(1) Automatic lowering lay-boy table

(1) Set of Operator platforms.

Documentation (operator and spare parts manuals).

Spare parts as available

Optional Equipment available at Additional Cost:

(1) Slatted Beater Roll for processing of multiple webs (if required).  Supplied new and retro-fitted.

Technical Specifications:

Age: c.1998

Max mechanical speed: 400 M/min

Max web width: 1450 mm

Max sheet length: 1200 mm

Min sheet length: 400 mm

Max pile height inc pallet: 1200 mm

Max pile weight: 1500 kg

Max Stock Thickness: 600 GSM
(Multiple Web)

Max Stock Thickness: 400 – 450 GSM
(Single Web)

Electrical supply: 415/318 volts 3 phase 50 HZ.

Electrical load: 39.5KW

Compressed Air supply: 5 bar clean and dry.
