Timson T32 Single Colour Short Grain Coldset Web Offset Book Press for ‘B Format’ Book Production

Timson T32 Single Colour Short Grain Coldset Web Offset Book Press for ‘B Format’ Book Production

Cut-off (2 around): 552.5” mm (21.75”)
Print Cylinder Circ: 1105 mm (43.5’’)
Max Web Width: 1346 mm (53”)
Max Ribbon Width (Collect 2): 508 mm (20”)
Max Number of Ribbons: 4
Max Signature Thickness: 3.5 mm
Folder Paginations: 2 x 16, 2 x 32, 2 x 48, 2 x 64

Production Hours: 87,201

Equipment comprising of:

(1) MEGTEC ZS1 Zero Speed Reelstand c.2012

(1) Timson Infeed

(1) E&L Web Guide

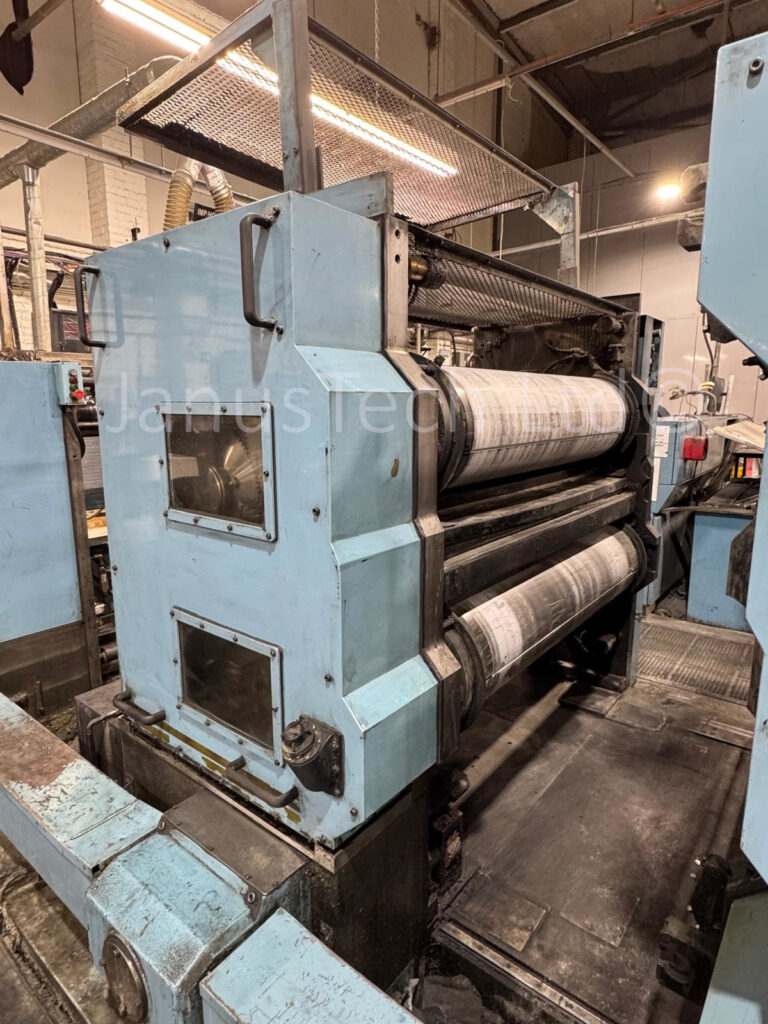

(1) Timson T32 Printing Unit

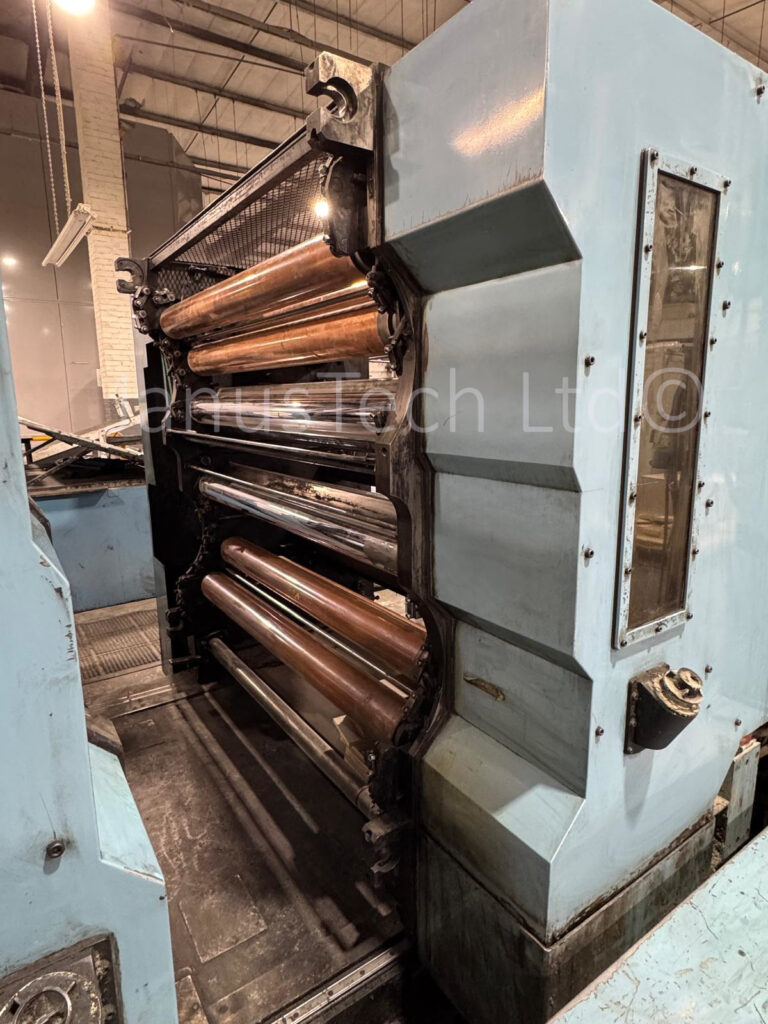

• Rack Back Inking Units
• Auto ink Roller Wash Up
• Timson Brush Dampening
• 3 Reciprocating Rollers
• 3 Forme Rollers

(1) Mixing and Recirculation Unit for Dampening Solution

(1) E&L Web Guide
(1) Draw Roll Unit

(1) Shear Slit Unit
• Driven lower anvils

(1) Ribbon Divert Unit
• Air blown motorised angle bars

(1) Ribbon Collation Unit
• Motorised ribbon to ribbon register
• Fold softening per ribbon

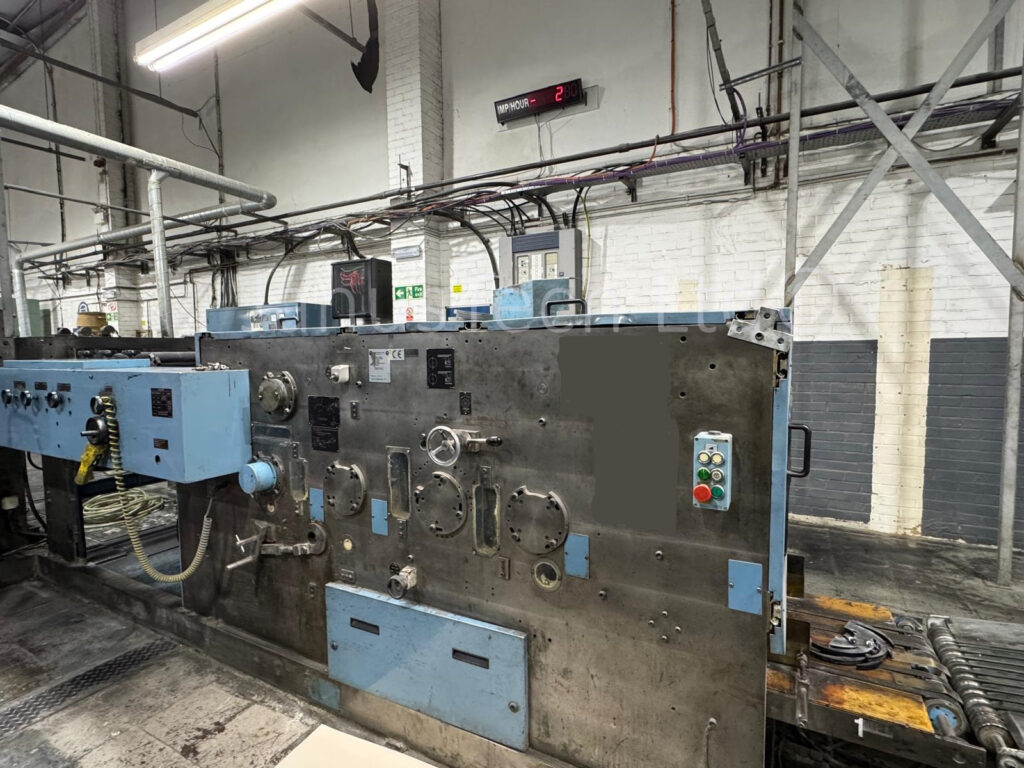

(1) Timson Folder Type M5C
• For production of 2 up double parallel cross grain folded products
• Up to 4 ribbons
• 2 Cuts around
• Collect 2 or straight production
• Cross fold (d.p)
• Single delivery

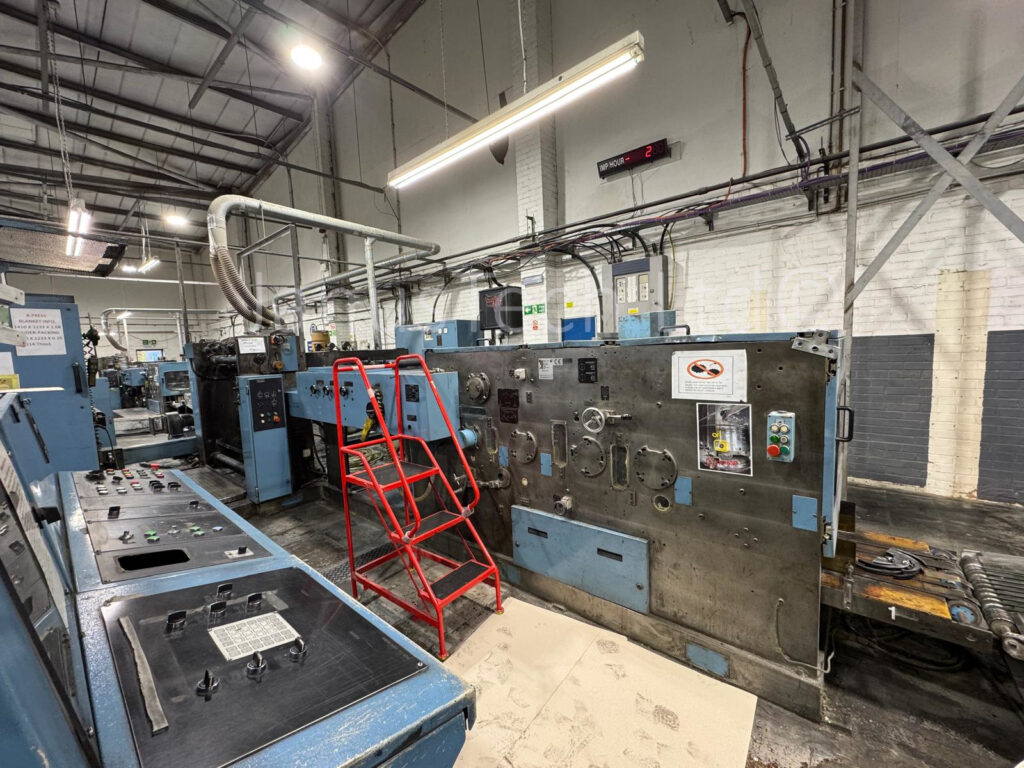

(1) Main Control Console

(1) Remote Ink Control
• Colour Desk

(1) Ribbon Register Control

(1) Folder Exit Conveyor

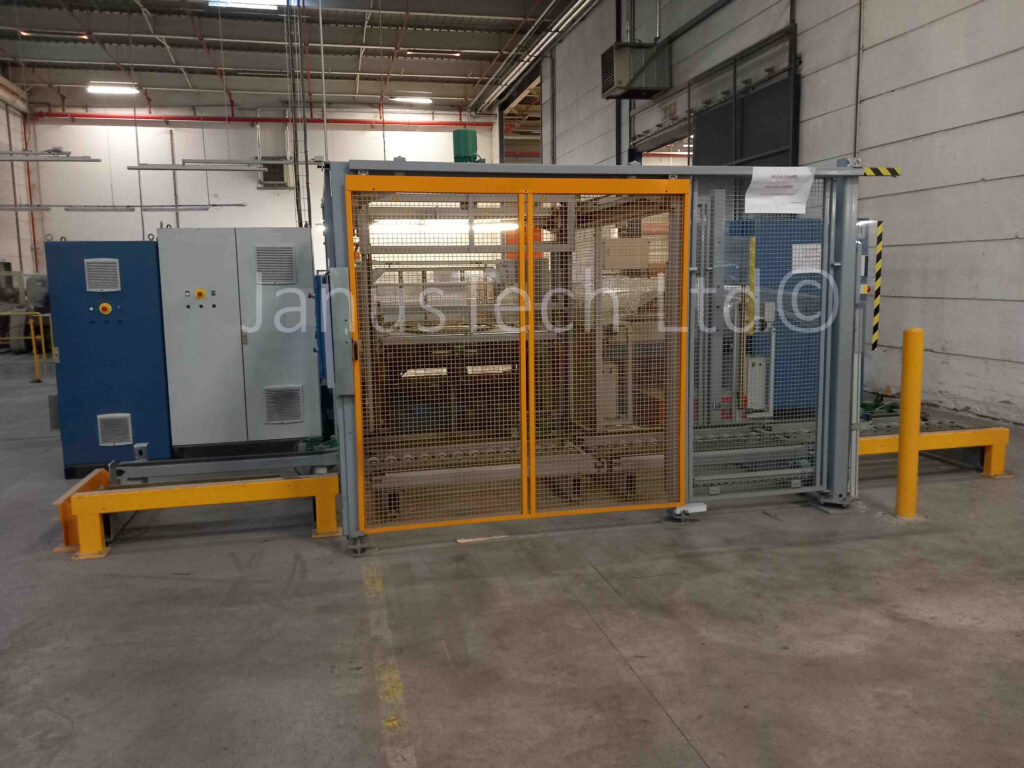

(1) Recmi HP1200 Horizontal Log Stacker c.2006 (recently fully refurbished by Recmi)
• Auto End Board Insertion
• Mosca Strapper c.2019
• PLA Palletiser
• Auto Pallet Feeder

(1) Electrical Control and Drive Cabinets

(1) Plate Bender

(1) Spare Parts and Rollers as available

(1) Set of Manuals and Drawings

Folded Product Data

The folder has a cylinder circumference of 43.5” and cuts 2 around to produce a cut length of 21.75”. The folder can operate in collect two or straight modes and delivers a 2 up double parallel section.
Max web width is 53”. B – Format size books: 129 x 198mm (5.1” x 7.8”) short grain produced as 96pp (2 on 48pp) with 3 ribbons.

Folding Possibilities

No of Ribbons 1 2 3 4
Straight 16pp 32pp 48pp 64pp
Collect 2 32pp 64pp 96pp 128pp
